ELECTRIC PALLET STACKER
Precision handling for high loads

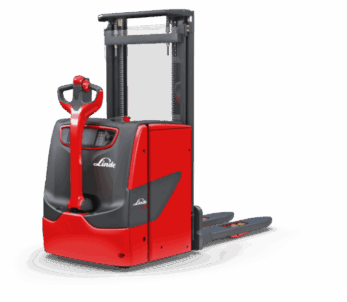

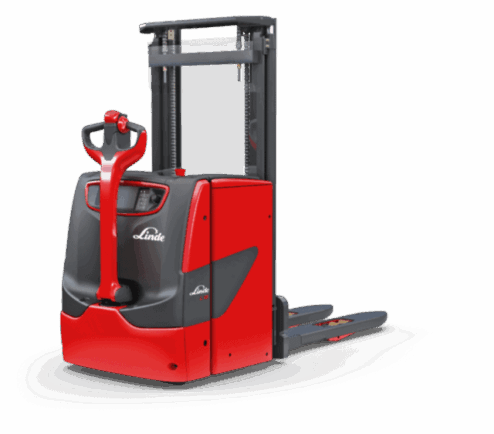

The L14 – L20 pedestrian pallet stackers enable increasing handling performance with the powerful 2.3 kW three-phase motors and high load capacities. They are ideal for handling in narrow aisles or service lifts. There is an optional initial lift version for more ground clearance. The truck can transport loads up to 2000 kg safely over ramps and uneven ground. The delicate OptiLift lift mast control makes handling easy, because all lifting motions run very precisely.
Load capacity of 1400 to 2000 kg, and a powerful 2.3 kW three-phase motor. Both factors ensure efficient handling processes. At the same time, the robust chassis gives the pedestrian pallet stacker a high residual load capacity. The loads can be moved very precisely using the OptiLift operating concept. The forks land softly using the Soft Landing function. The optional load weight display is helpful in many handling processes. It displays the weight with an accuracy of +/- 50 kg up to a lift height of 1500 mm.
The lift mast can only be operated when the tiller is in the working position. This is provided by the Linde SafetyLift function. In addition, the truck automatically adjusts its speed to the distance between the operator and the truck. The angle of the tiller is the basis for this. Primarily, the trucks activates an electromagnetic braking system if the operator moves the tiller to the top or bottom end position. Slight resistance before the end-of-stroke prevents unintended braking. The optional load scale not only displays the weight of the load, but also warns of overloads.
All control elements are ergonomically arranged in the tiller head and can be reached intuitively. This makes the working day easier. The same applies to the electrical power steering. Using this, the operator can maneuver without great effort. Generously designed storage compartments offer space for work devices such as scanners.
Robust components, a stable chassis and a maintenance-free three-phase motor ensure long service intervals and low operating costs. The motor is constructed in such a way that it is completely moisture and dust resistant. These trucks will be in use for a long time, even under intensive use. The large color display gives service technicians and operators a quick overview of operating hours, battery capacity and service status.
Whether you’re looking for a brand new forklift, a certified pre-owned used forklift or short-term and long-term forklift hire, Linde Material Handling Singapore has everything you need – all under the one roof.
SERIES 1173 L14 -L20 ELECTRIC PALLET STACKER
