Linde Safety Guard
THE ASSISTANCE SYSTEM THAT DETECTS HAZARDS BEFORE THEY ARISE
SAFETY WHEN IT MATTERS MOST
What if people, their handling equipment and the infrastructure could communicate with each other?

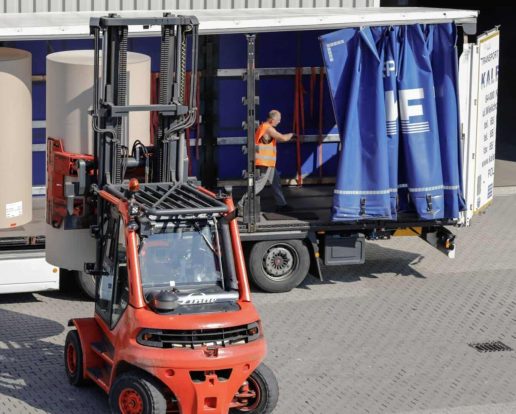

Material handling operations like loading and unloading trucks can encounter potentially hazardous situations. Industrial trucks and personnel working together in close proximity can be challenging and difficult to control. In the worst-case scenario, this can lead to injury or property damage.
Every aspect of any material handling application demands constant vigilance by all personnel involved: Blind corners, low visibility areas and distracting noises are all ever-present safety risks in intralogistics and manufacturing working environments.
A Timely Warning: The Linde Safety Guard
The Linde Safety Guard is an innovative monitoring system which increases safety for truck operators and pedestrians in the vicinity of the truck. Active advance warning in the event of potential hazards mean that everyone involved can react immediately. Depending on the application and the equipment, the Safety Guard system warns of imminent danger via acoustic signals, flashing LED lights or vibrations. Hazards can then be dealt with before any physical injury or collateral damage occurs.This unique safety system was developed by the start-up Comnovo, which was acquired by Linde Material Handling in July 2017. The system has been incorporated into Linde Material Handling’s industrial trucks since early 2016. Since then, the system has proven itself across a wide variety of industries.
Wherever industrial trucks are in use, there exists a complex interplay between man and machine. The Linde Safety Guard is an innovative monitoring system which provides an early warning of potential hazards.
Always in the Safe Zone
Be it excessive speeds, personnel crossing a truck’s path or low visibility: There are a multitude of reasons why accidents can occur while working with industrial trucks. The Linde Safety Guard’s system can be configured to monitor specific risks.
HAZARDOUS WORKPLACE ZONES FOR INDUSTRIAL TRUCKS AND PEDESTRIANS
At corners, junctions or hall entrances, industrial trucks can pose a risk to pedestrians. The Linde Safety Guard system provides advance warnings to both the operator and pedestrians. The warning signal can be transmitted through walls and racking and is accurate to within 10 centimetres. Warnings are only triggered when there is a clear danger, thus avoiding false alarms.
Accidents can occur if industrial trucks travel too fast through areas where personnel frequently cross. Long, straight stretches can also tempt truck operators to exceed a safe travel speed. The Linde Safety Guard automatically reduces travel speed in these critical areas.
Collisions between trucks can occur at crossing points where visibility is poor or restricted. In these circumstances, the Linde Safety Guard system warns all truck operators of the other trucks’ presence in their immediate vicinity. The Truck Unit displays the direction from which the trucks are approaching. The minimum distance between trucks before a warning is triggered is adjustable.
The Linde Safety Guard system increases the safety of all personnel involved in internal traffic. It can see around corners and through walls, reduces speeds automatically and can be programmed to suit any hazardous scenario.
The Linde Safety Guard uses warning zones to prevent accidents. Transmitters are positioned on industrial trucks, walls, racking and even carried by the personnel themselves. This ensures rapid detection, early warning and avoidance of hazardous situations.
If a pedestrian and a truck look likely to collide, then both the industrial truck and the pedestrian are warned simultaneously. A receiver in the truck indicates how many pedestrian personnel are approaching the danger zone and from which direction. Pedestrians are warned by the transmitter they have on their person. This also works through walls and racking.
Speed restriction zones can also be pre-defined and programmed, so that the system automatically reduces the truck’s speed in these zones and also warns the truck operator. This minimises accidents between trucks and personnel in areas like production, order picking areas and busy intersections.
All this is only possible because the Linde Safety Guard system is able to precisely determine the position of marked objects or personnel with an accuracy of ten centimetres accuracy and the warning zones are individually adjustable. This level of precision also helps to prevent false alarms. Moreover, a broadband radio signal in the 4 GHz range (UWB) helps to ensure reliability by eliminating interference from WiFi, Bluetooth or RFID.
The system can be adapted to meet any safety requirements. It consists of individual modules and can be tailored to the respective hazardous situation on individual sites.
Advantages at a Glance
*Valid for typical infrastructure in intralogistics. Verified during consultation.
