SERIES 1191
W08
ELECTRIC TOW TRACTOR
- 0.8 tonnes capacity
- 800kg load
- Electric Motor
- Ideal for Transporting

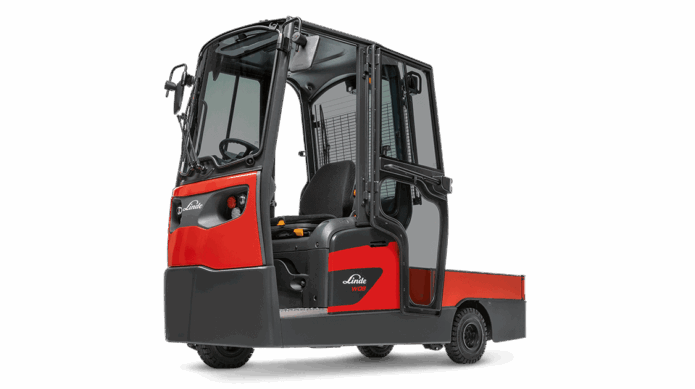

From its heavy-duty, profiled chassis to its rugged, impact resistant top section and steel cased carrying platform the Series 1191 W08 Electric Tow Tractor offers all the features you need. The ergonomic rounded profile design, resilient cushioning and swinging arm suspension system front & rear are the platform for precise responsive steering with a large lock to lock angle and the unique adjustable steering column suits every size of driver for precision travelling and manoeuvring.
- Four independent braking systems
- Regenerative electric braking
- Self-adjusting hydraulic drum brakes on all wheels
- Automatic electromagnetic parking brake
- Automatic gradient assist start (No roll-back)
- Superbly spacious and ergonomic drivers compartment
- Non-slip step and wide access on both sides
- Spacious foot well and leg room
- Ergonomic, automotive pedal layout
- Automotive style intuitive control levers

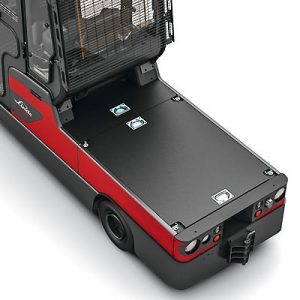

- Rear multi-position towing coupling as standard
- Low maintenance design
- Digital display assists charging and maintenance planning
- Diagnostic computer port (CAN bus system)
- Optional types of front and rear towing couplings
- Optional automatic couplings
- Exceptionally energy efficient Linde digital controller
- Smooth, precision control of travel and manoeuvring
- Programmable performance parameters
- Delivers optimum versatility and efficiency to the 4.5 kW sealed AC drive motor

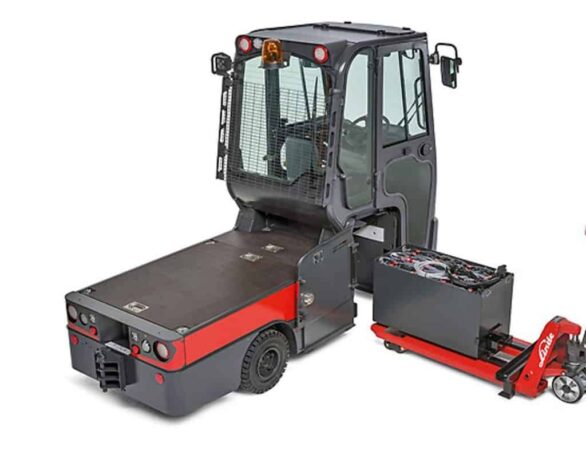

- 48V DIN batteries up to 375 Ah capacity
- Efficient and safe side changing design
- Various optional changing methods including battery on rollers
- Range of chargers to suit the battery and application
- Easy service access to all key components
- Extended operational uptime between scheduled services

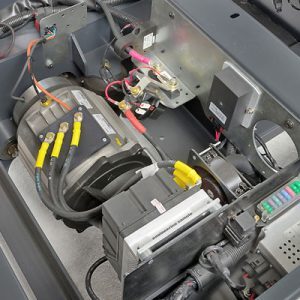

The powerful 4.5 kW sealed AC drive motor produces impressive pulling power and up to 20 km/h unladen speed, while the latest energy efficient Linde electronic control delivers seamless travelling and manoeuvrability.
Four independent braking systems provide effective braking in all situations for the electric tow tractor which has a heavy-duty steel chassis and rugged upper structure with rounded profiles to protect the driver. Other safety features include an emergency isolator, electric horn, duplicated fail-to-safe electronic circuits and excellent all-round visibility. The parking brake is an automatic, electro-magnetic unit for maximum durability and efficiency.

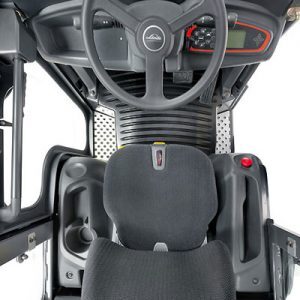

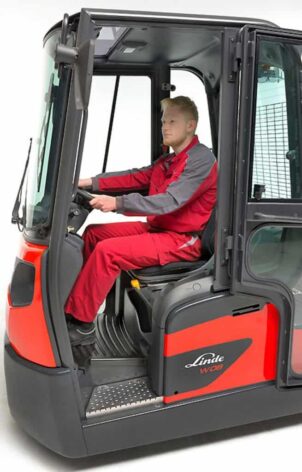

Easy access and exit is ensured with ergonomic, non-slip steps and wide access openings on either side with smoothly curved profiles. The spacious angled foot well and generous legroom, adjustable seat, intuitive automotive control levers, adjustable steering wheel and ergonomic pedal layout provide an optimum working environment for every individual operator. All three wheels have resilient mountings and swinging arm suspension.
These outstanding ergonomic and performance design features result in a unique, intuitive interface between the driver and the tractor, to deliver consistently high efficiency and productivity ratios in a wide range of material handling applications.
A rugged, profiled steel chassis and impact resistant upper structures guarantee maximum structural integrity and durability. Industrial standard mechanical and electrical components together with a heavy-duty drive axle and differential deliver continuous, reliable performance.
Whether you’re looking for a brand new forklift, a certified pre-owned used forklift or short-term and long-term forklift hire, Linde Material Handling Singapore has everything you need – all under the one roof.
Linde Series 1191 W08 Electric Tow Tractor
